ALSPEC Commercial Systems v CAPRAL



View-Max Brochure

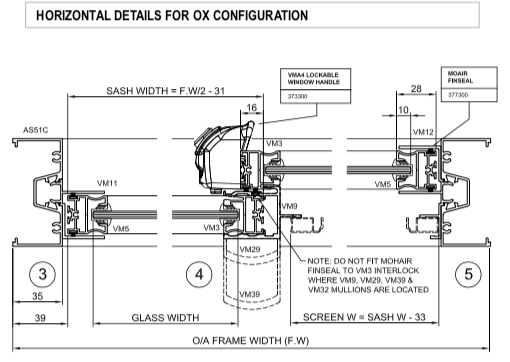

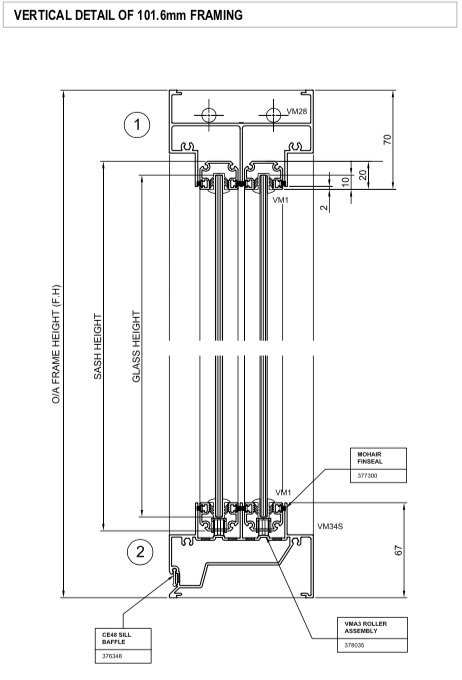

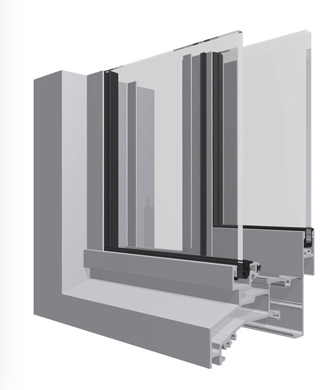

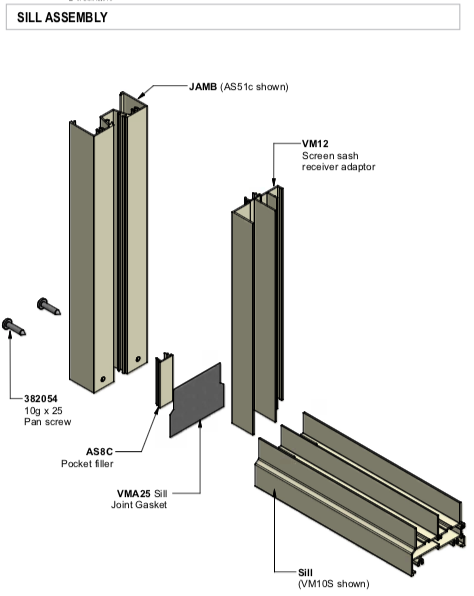

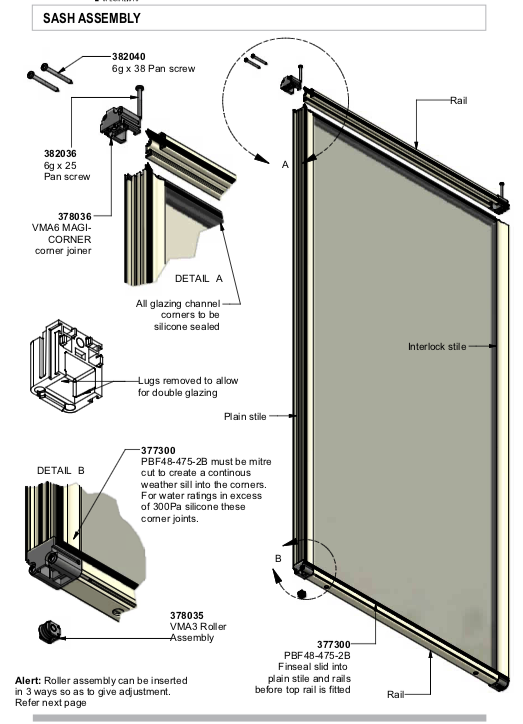

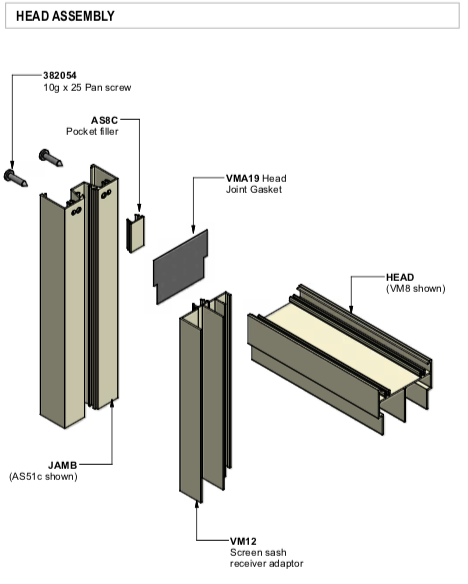

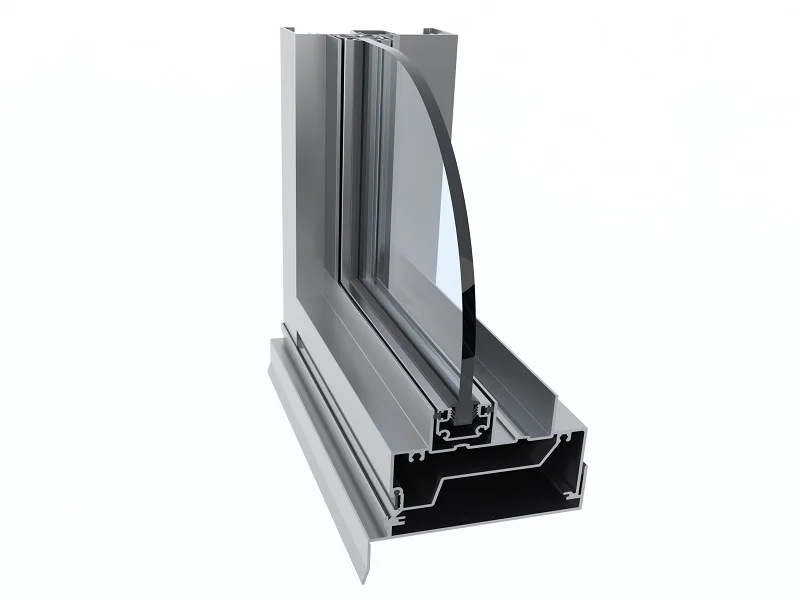

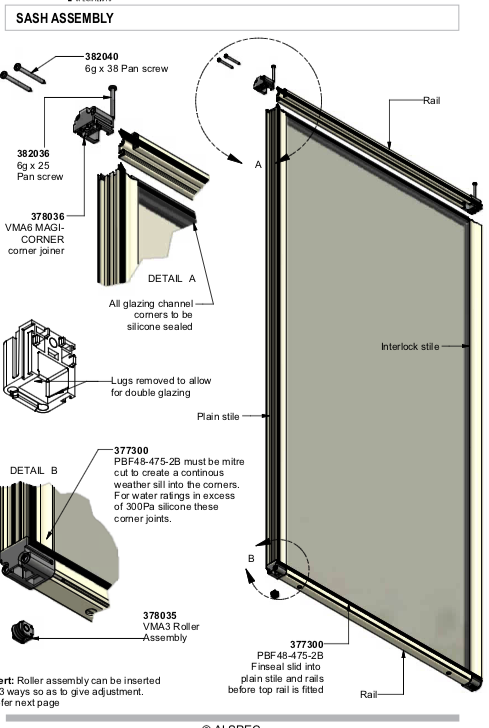

The View-Max window offers unparalleled levels of flexibility by allowing designers, architects, the choice of 76mm (Derwent) or 101.6mm (McArthur) framing to cater for both the slimline applications and those of a more robust commercial design. The View-Max window offers the flexibility of single and double glazing options. The View-Max integrates a number of design initiatives unique to Alspec such as the proprietary locking, roller and drainage systems.

Key Features • Commercially designed with sliding & double-hung options to suit 76mm and 101.6mm • Developed specifically for multi-storey residential, schools and architecturally designed housing • 4mm up to 11mm monolithic glass and up to 16mm double glazed units. • Superior thermal and acoustic performance (refer to test reports) • Superior weather performance

CAPRAL 480 Series -

The AGS 380 & 480 Sliding Windows incorporate the features and flexibility of a residential window system into the commercial grade AGS 400 Narrowline framing system.

Commercial Hinged Doors


Swan EVO Brochure

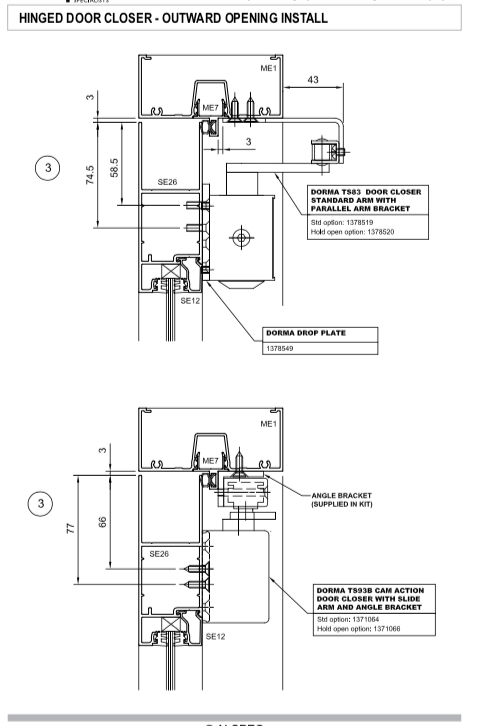

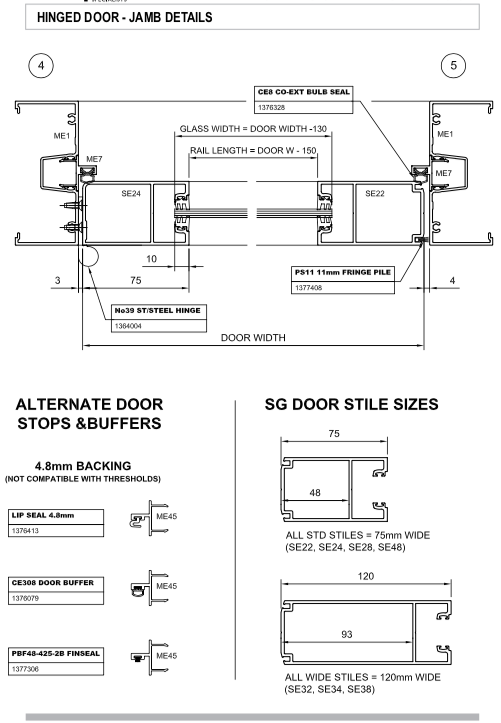

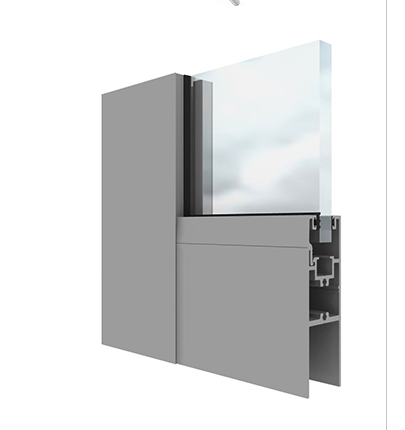

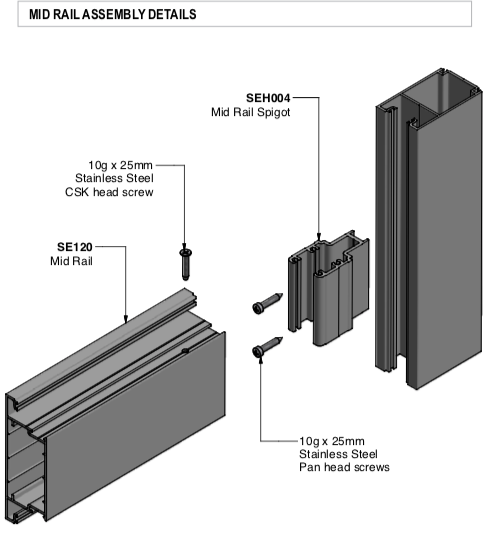

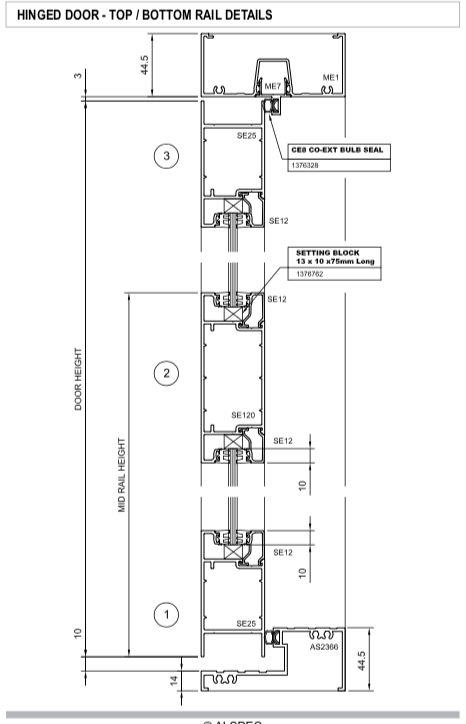

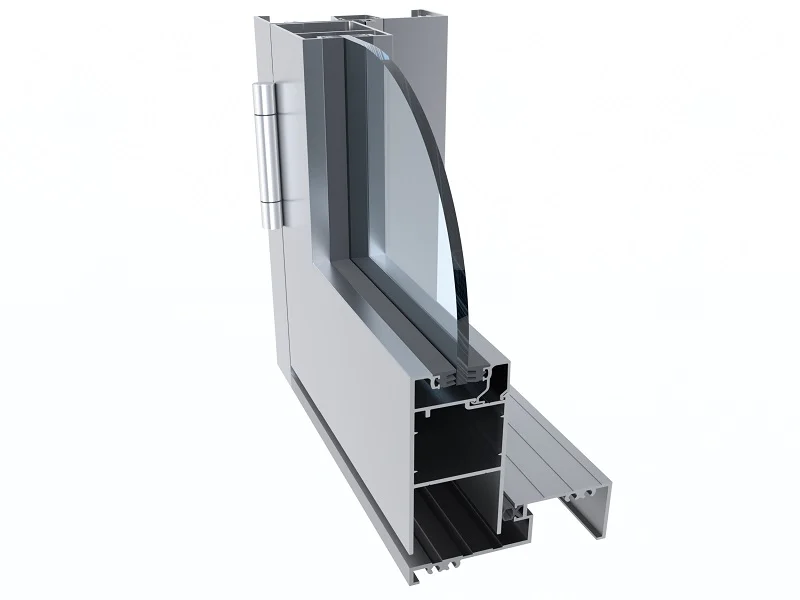

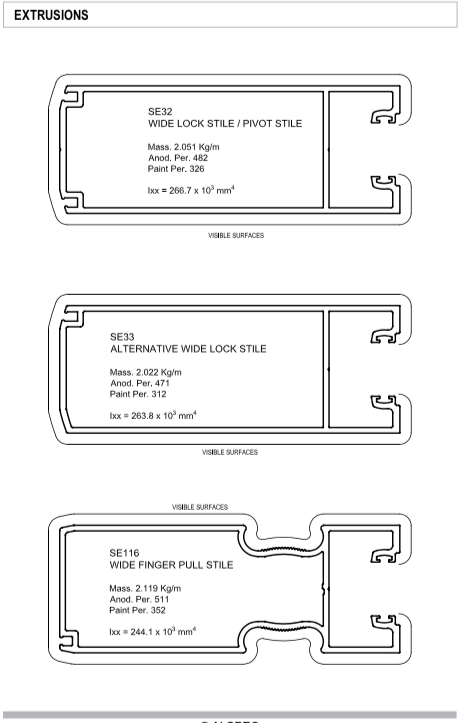

The Alpsec® Swan Evo™ 45mm Commercial Door is a versatile shopfront door that is easy to fabricate and install. Suitable for a wide range of applications, the Swan Evo™ can be used in hinged, pivoted or sliding configurations. The Swan Evo™ integrates seamlessly with the Alspec® commercial framing systems.

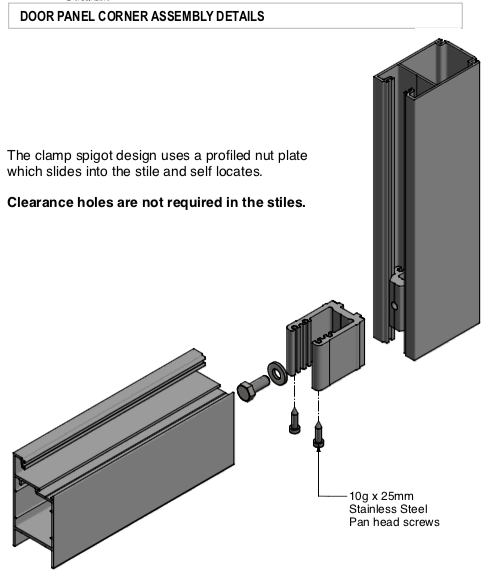

Featuring a new and improved clamping spigot set, for superior performance and easy fitment, integrated heal and toe block and captive glazing option, the Swan Evo™ provides the ideal solution where superior operation and performance is required. Glazing could not be simpler with the colour coded wedges from standard Alspec® systems being utilised to deal with the many diverse glass options.

CAPRAL 225 Series Door

Aluminium Hinged, Pivot & Sliding Doors

The AGS 225 Door is a 46mm pocket glazed commercial door panel capable of hinge, pivot and sliding door configurations and has been designed with flexibility, performance and ease of assembly in mind. The AGS 225 Door builds on the trusted and reliable 200 and 275 Series Doors, suiting a wide range of applications from architectural entry doors through to commercial shopfronts.
